Document Cloud

Lecture commentée* des sources

* troll

Pourquoi Backbone est important ?

"Without a backbone you could not stand up at all.

They also protect your spinal cord and nerves from damage and are a direct path to the brain."

Pourquoi DocumentCloud ?

Jeremy Ashkenas
@jashkenas

documentcloud.org

https://github.com/documentcloud/documentcloud

Structuration de Backbone

Source

$(function() {

  window.HomePage = Backbone.View.extend({

    el : document.body,

    events : {
      'click #login_button': 'login'
    },

    initialize : function() { /* */},

    login : function() { /* */}
  });

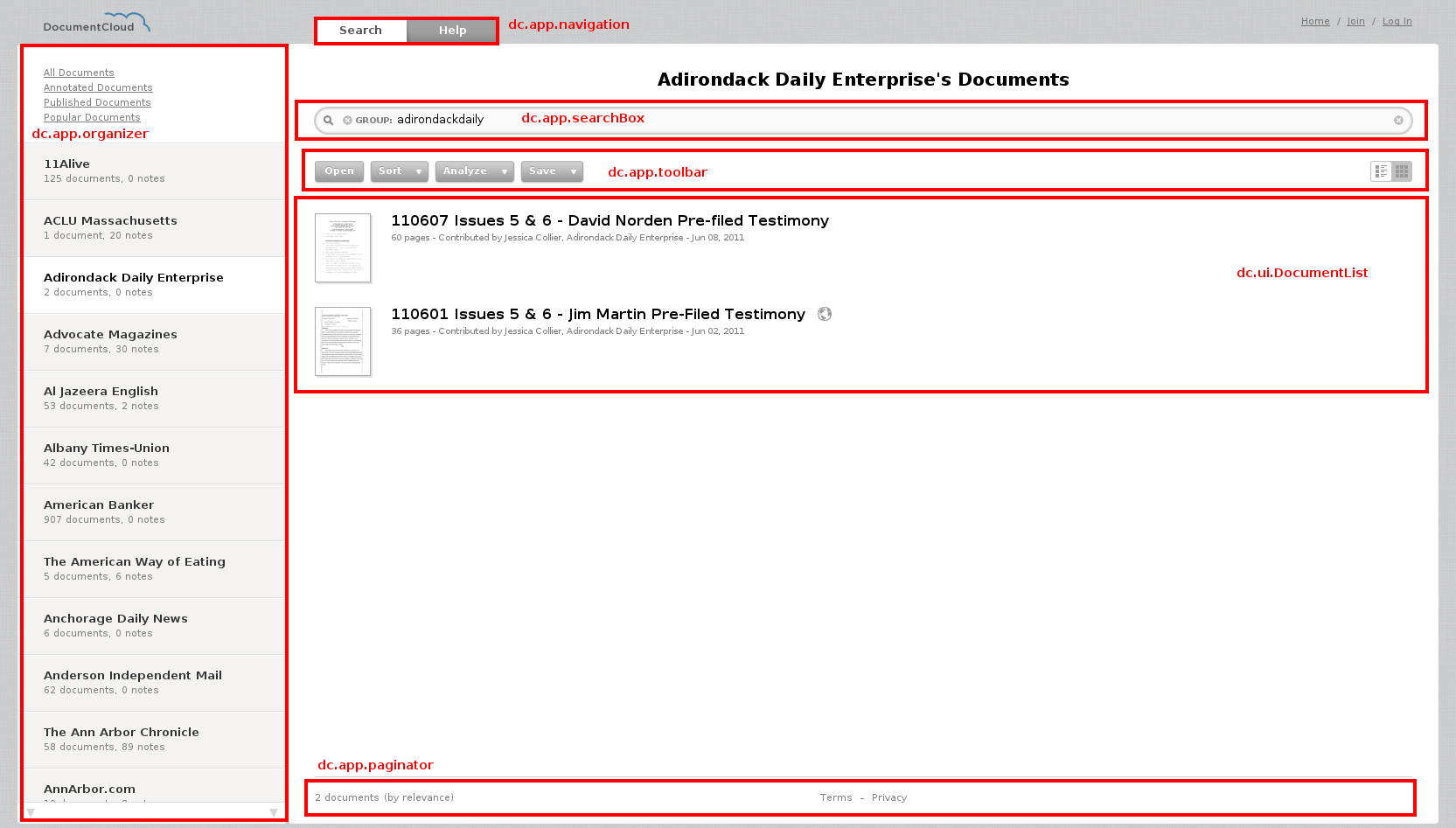

Découper le DOM en plusieurs vues

Par défaut non attaché au DOM.

Mais on peut l'attaché à l'initialisation


          el : document.body

          el : '#help ul'



Découper le DOM en plusieurs vues

Ou plus tard


this.panel.add('search_box',
  dc.app.searchBox.render().el);

this.panel.add('pagination',
  dc.app.paginator.el);

this.panel.add('search_toolbar',
  dc.app.toolbar.render().el);

this.panel.add('document_list',
  this.documentList.render().el);

this.sidebar.add('entities',
  this.entityList.render().el);

Source

Et s'y tenir



    this.$('.account_list_content')
        .prepend(views);


Source

Uniformiser les interactions avec l'utilisateur


events : {
  'keydown #search_box':   'maybeSearch',
  'search #search_box':    'search',
  'focus #search_box':     'addFocus',
  'blur #search_box':      'removeFocus',
  'click .cancel_search':  'cancelSearch',
  'click #login_button':   'login'
},

Source

Une machine à état non persisté


this.setMode('is', 'open');
this.setMode('not', 'open');
this.setMode('is', 'enabled');
this.setMode('not', 'enabled');
this.setMode('is', 'active');
this.setMode('not', 'active');

Source

Pour utiliser le sucre syntaxique de Backbone.


window.HomePage = Backbone.View.extend({

  events : {
    'keydown #search_box':   'maybeSearch',
    'search #search_box':    'search',
    'focus #search_box':     'addFocus',
    'blur #search_box':      'removeFocus',
    'click .cancel_search':  'cancelSearch',
    'click #login_button':   'login'
  },

  login : function() { /* ... */ },
  search : function() { /* ... */ },

});

Source

Constantes

En haut en majuscule, facile à repérer.


dc.controllers.Searcher = Backbone.Router.extend({

  PAGE_MATCHER  : (/\/p(\d+)$/),

  DOCUMENTS_URL : '/search/documents.json',

  FACETS_URL    : '/search/facets.json',


Source

Un objet pour découper notre code


  initialize : function() {
    this.createSubViews();
    this.renderSubViews();
    dc.app.searcher = new dc.controllers.Searcher;
  },

  createSubViews : function() {
    this.sidebar      = new dc.ui.Sidebar();
    this.panel        = new dc.ui.Panel();
    this.documentList = new dc.ui.DocumentList();
    this.entityList   = new dc.ui.EntityList();
    // ...
  },

  renderSubViews : function() {
    var content   = this.$('#content');
    content.append(this.sidebar.render().el);



Pour partager un état


  initialize : function() {
    _.bindAll(this, '_loadFacetResults');
  }

  loadFacet : function(facet) {
    dc.ui.spinner.show();
    this.currentSearch = $.get(
      this.FACETS_URL,
      {q : this.searchBox.value(), facet : facet},
      this._loadFacetResults,
      'json');
  },

  _loadFacetResults : function(resp) { ... }

Source

Pour faire des factories


dc.ui.Dialog = Backbone.View.extend({

  options : {
    title       : "Untitled Dialog",
    text        : null,
  },

  // ...
}

_.extend(dc.ui.Dialog, {

  alert : function(text, options) {
    return new dc.ui.Dialog(_.extend({
      mode      : 'alert',
      title     : null,
      text      : text
    }, options)).render();
  },
  // ...

Source

Pour créer des classes filles


dc.ui.ProjectDialog = dc.ui.Dialog.extend({

  constructor : function(options) {
    dc.ui.Dialog.call(/* */);
  },

  render : function(noHide) {
    dc.ui.Dialog.prototype.render.call(/* */);


Source

Pour découpler son code


$ grep -R "tab:" .
./ui/workspace/navigation.js:    if (!(silent === true)) this.trigger('tab:' + name);

./ui/workspace/navigation.js:    this.bind('tab:entities', _.bind(function() {
./ui/workspace/help.js:          dc.app.navigation.bind('tab:help',  _.bind(this.openHelpTab, this));
./ui/documents/upload_dialog.js: dc.app.navigation.bind('tab:documents', _.bind(function(){
./app/searcher.js:               dc.app.navigation.bind('tab:search', this.loadDefault);



Un modèle/collection riche en code métier


dc.model.Document = Backbone.Model.extend({

  publishAtDate : function() { /* */ },

  formattedPublishAtDate : function() {/* */},



dc.model.DocumentSet = Backbone.Collection.extend({

  model    : dc.model.Document,

  downloadSelectedFullText : function() {/* */},


Source

Un modèle pour synchroniser l'état des ressources


  // Fetch all of the documents page mentions for a given search query.
  fetchMentions : function(query) {
    $.getJSON(this.url() + '/mentions', {q: query}, _.bind(function(resp) {
      this.set(resp);
    }, this));
  },

  // Tell the server to reprocess the text for this document.
  reprocessText : function(forceOCR) {
    var params = {};
    if (forceOCR) params.ocr = true;
    $.ajax({
      url      : this.url() + '/reprocess_text',
      data     : params,
      type     : 'POST',
      dataType : 'json',
      success  : _.bind(function(resp) {
        this.set({access : dc.access.PENDING});
    }, this)});
  },

Source

Ce qui entraine une réactualisation des vues


dc.ui.Document = Backbone.View.extend({

  constructor : function(options) {
    // ...
    this.model.bind('change', this._onDocumentChange);
    this.model.bind('change:selected', this._setSelected);
    this.model.bind('focus', this.focus);
    this.model.bind('view:pages', this.viewPages);
    this.model.bind('notes:hide', this.hideNotes);
    this.model.notes.bind('add', this._addNote);
    this.model.notes.bind('reset', this._renderNotes);
    this.model.entities.bind('load', this._renderEntities);
    this.model.pageEntities.bind('reset', this._renderPages);
  }

  _onDocumentChange : function() {
    if (this.model.hasChanged('selected')) return;
    this.render();
  },



Un model constitué de sous-model


dc.model.Document = Backbone.Model.extend({

  constructor : function(attrs, options) {
    this.notes = new dc.model.NoteSet();
    this.notes.url = function() {
      return '/documents/' + id + '/annotations';
    };
    if (this.get('annotations'))
       this.notes.reset(this.get('annotations'));


Surtout du READ

La structure des fichiers


├── application.js
├── app
├── lib
├── model
├── ui
│   ├── accounts
│   ├── common
│   ├── documents
│   ├── metadata
│   ├── organizer
│   ├── search
│   └── workspace
└── vendor


Un namespace commun


(function() {
  window.dc = {};
  dc.controllers = {};
  dc.model = {};
  dc.app = {};
  dc.ui = {};
})();

Source

Augmenté par chaque fichier


dc.controllers.Workspace = Backbone.Router.extend({
  // ...
});

Source

Contenant les classes et les instances


  createSubViews : function() {
    dc.app.paginator  = new dc.ui.Paginator();
    dc.app.navigation = new dc.ui.Navigation();
    dc.app.toolbar    = new dc.ui.Toolbar();
    dc.app.organizer  = new dc.ui.Organizer();
    dc.ui.notifier    = new dc.ui.Notifier();
    dc.ui.tooltip     = new dc.ui.Tooltip();

Source

Initialisé à un seul endroit


dc.controllers.Workspace = Backbone.Router.extend({
  // ...
  createSubViews : function() {
    dc.app.paginator  = new dc.ui.Paginator();
    dc.app.navigation = new dc.ui.Navigation();
    dc.app.toolbar    = new dc.ui.Toolbar();
    dc.app.organizer  = new dc.ui.Organizer();
    dc.ui.notifier    = new dc.ui.Notifier();
    dc.ui.tooltip     = new dc.ui.Tooltip();
    dc.app.searchBox  = VS.init(this.searchOptions());
    this.sidebar      = new dc.ui.Sidebar();
    this.panel        = new dc.ui.Panel();
    this.documentList = new dc.ui.DocumentList();
    this.entityList   = new dc.ui.EntityList();

    if (!dc.account) return;

    dc.app.uploader   = new dc.ui.UploadDialog();
    dc.app.accounts   = new dc.ui.AccountDialog();
    this.accountBadge = new dc.ui.AccountView({model : Accounts.current(), kind : 'badge'});
  },

Source

Afin d'intéragir plus simplement entre module.


dc.ui.Document = Backbone.View.extend({

  // ...

  searchAccount : function() {
    dc.app.searcher.addToSearch('account', this.model.get('account_slug'));
  },

  searchOrganization : function() {
    dc.app.searcher.addToSearch('group', this.model.get('organization_slug'));
  },

  searchSource : function() {
    dc.app.searcher.addToSearch('source', this.model.get('source').replace(/"/g, '\\"'));
  },

});

Source

Des templates compilés


dc.ui.Menu = Backbone.View.extend({

  constructor : function(options) {
    this.content        = $(JST['common/menu'](this.options));
  },

  render : function() {
    $(this.el).html(JST['common/menubutton']({label : this.options.label}));
    this._label = this.$('.label');
    $(document.body).append(this.content);
    return this;
  },


<div class="wrapper">
  <div class="label">
    <%= label %>
  </div>
</div>
<div class="corner"></div>

Source JS JST
From Jammit
Backbone patterns

Des questions ?
